ASA sprocket and platewheel
ASA sprockets and platewheels include ASA35/40,ASA50,ASA60,ASA80, ASA100,ASA120,etc.

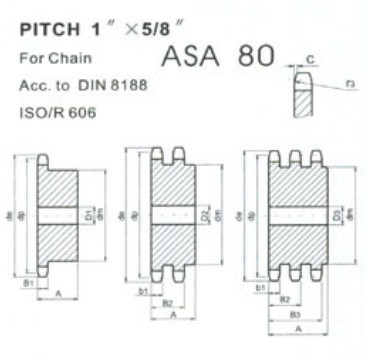

It is manufactured as per DIN 8188 and ISO/R 606 for chains.In the follow form,you can see ASA 80 sprocket’s data.
| Sprocket | Simplex | Duplex | Triplex | ||||||||
| Z | De | Dp | Dm | D1 | A | Dm | D1 | A | Dm | D1 | A |
| 8 9 10 11 12 |
79.49 87.38 95.32 103.28 111.26 |
66.37 74.27 82.19 90.14 98.14 |
42 16 35 50 16 35 55 16 35 61 16 40 69 16 40 |
72 20 70 | 72 25 100 | ||||||
| 13 14 15 16 17 |
119.26 127.27 135.29 143.32 151.35 |
106.12 114.15 122.17 130.20 138.22 |
78 16 40 84 16 40 92 16 40 100 20 45 100 20 45 |
78 20 70 86 20 70 94 20 70 102 20 70 110 20 70 |
78 25 100 86 25 100 94 25 100 102 30 100 110 30 100 |
||||||
| 18 19 20 21 22 |
159.39 167.44 175.49 183.54 191.60 |
146.28 154.33 162.38 170.43 178.48 |
100 20 45 100 20 45 100 20 45 110 20 50 110 20 50 |
118 20 70 126 20 70 130 20 70 130 25 70 |
118 30 100 126 30 100 130 30 100 |
||||||
