Iron sprockets
Cast iron sprocket is manufactured as per DIN 8187 ISO/R 606.The materical is GG22-GG25.And the main specification includes 06B-1-2-3, 08B-1-2-3, 10B-1-2-3, 12B-1-2-3.In the follow form,we have listed the 10B-1-2-3 cast iron sprocket’s data.

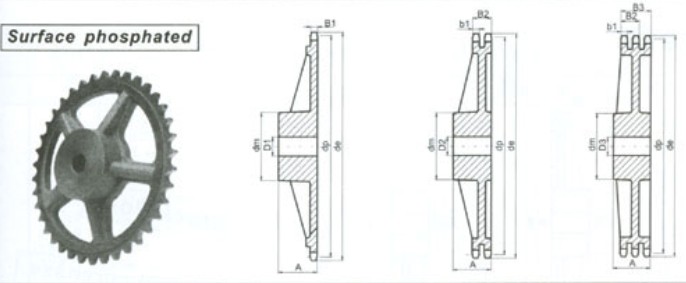

5/8”*3/8”(10B-1-2-3)
Z |
De | Dp | Simplex | Duplex | Triplex | ||||||
| Dm | D1 | A | Dm | D1 | A | Dm | D1 | A | |||
| 38 45 57 76 95 114 |
199.2 235.0 296.0 392.1 488.5 584.1 |
192.24 227.58 288.18 384.16 480.14 576.13 |
80 20 40 80 20 40 90 24 45 90 24 50 100 24 56 100 24 56 |
100 30 50 100 30 50 100 30 56 100 30 63 110 30 63 125 30 70 |
100 32 60 100 32 60 100 32 63 110 35 67 125 35 70 125 35 80 |
||||||
