BL series leaf chain

BL series leaf chain

CHAIN NO. ISO/DIN Lacing Pitch
P
Plate Pin verage
 Ultimate
Strength
kgf
Approx Weight
kg/m
Height Hole Thickness Dia Lengths

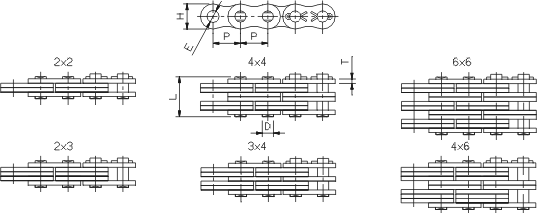

inch mm H E(min) T D L
BL422 LH0822 2 x 2 1/2" 12.70 12.00 5.12 2.00 5.06 10.60 3000 0.69
BL423 LH0823 2 x 3             12.60 3000 0.77
BL434 LH0834 3 x 4             16.80 4500 1.07
BL444 LH0844 4 x 4             18.90 6000 1.19
BL446 LH0846 4 x 6             23.10 6000 1.48
BL466 LH0866 6 x 6             27.20 9000 1.80
BL523 LH1023 2 x 3 5/8" 15.875 14.85 5.98 2.40 5.95 14.85 4400 1.13
BL534 LH1034 3 x 4             19.60 6600 1.56
BL544 LH1044 4 x 4             22.30 8800 1.78
BL546 LH1046 4 x 6             27.30 8800 2.22
BL566 LH1066 6 x 6             32.25 13200 2.74
BL623 LH1223 2 x 3 3/4" 19.05 17.90 7.96 3.15 7.94 19.35 7000 1.82
BL634 LH1234 3 x 4             25.95 10500 2.52
BL644 LH1244 4 x 4             29.50 14000 2.87
BL646 LH1246 4 x 6             36.00 14000 3.57
BL666 LH1266 6 x 6             42.35 21000 4.27
BL822 LH1622 2 x 2 1" 25.40 24.00 9.56 3.90 9.52 21.11 11500 2.30
BL823 LH1623 2 x 3             25.25 11500 3.15
BL834 LH1634 3 x 4             33.53 17250 4.37
BL844 LH1644 4 x 4             37.67 23000 4.98
BL846 LH1646 4 x 6             45.95 23000 6.20
BL866 LH1666 6 x 6             54.23 34500 7.50
BL1023 LH2023 2 x 3 1-1/4" 31.75 30.10 11.14 4.70 11.10 29.70 15500 3.85
BL1034 LH2034 3 x 4             39.50 23250 5.84
BL1044 LH2044 4 x 4             44.40 31000 7.20
BL1046 LH2046 4 x 6             54.20 31000 8.24
BL1066 LH2066 6 x 6             64.00 46500 10.63
BL1222 LH2422 2 x 2 1-1/2" 38.10 35.00 12.74 5.60 12.70 29.05 20500 4.83
BL1223 LH2423 2 x 3             34.85 20500 6.54
BL1234 LH2434 3 x 4             46.50 30750 9.10
BL1244 LH2444 4 x 4             52.30 41000 10.39
BL1246 LH2446 4 x 6             63.95 41000 12.01
BL1266 LH2466 6 x 6             75.60 61500 14.58

Any other enquiry than above spec. is welcomed

BL series leaf chain

CHAIN NO. ISO/DIN Lacing Pitch
P
Plate

Pin

verage
 Ultimate
Strength
kgf

Approx Weight
kg/m

Height Hole Thickness Dia Lengths

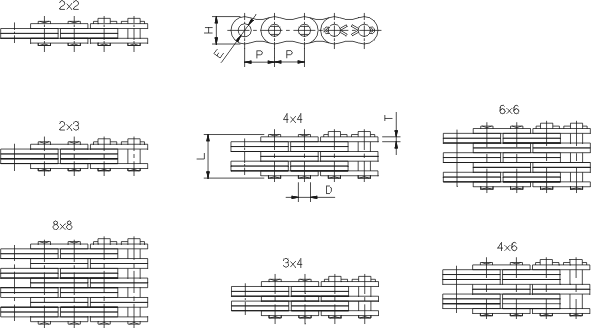

inch mm H E(min) T D L
BL1422 LH2822 2 x 2 1-3/4" 44.45   14.31 6.40 14.28 32.90 23000 7.20
BL1423 LH2823 2 x 3             39.40 23000 9.05
BL1434 LH2834 3 x 4             52.60 38000 12.60
BL1444 LH2844 4 x 4             59.30 46000 14.41
BL1446 LH2846 4 x 6             72.40 46000 17.98
BL1466T LH2866 6 x 6             85.70 69000 21.52
BL1488T LH2888 8 x 8             112.00 92000 28.59
BL1622 LH3222 2 x 2 2" 50.80 48.00 17.49 7.20 17.45 36.40 35000 9.72
BL1623 LH3223 2 x 3             43.90 35000 12.11
BL1634 LH3234 3 x 4             59.10 55000 16.86
BL1644 LH3244 4 x 4             66.60 70000 19.22
BL1646 LH3246 4 x 6             81.70 70000 23.92
BL1666T LH3266 6 x 6             95.80 105000 28.71
BL1688T LH3288 8 x 8             125.60 140000 38.19

T Type=Press fit assembly on all plate of pin links.
T type is available for size BL14 and BL16 series.
BL1466,BL1488,BL1666,BL1688is only available in T type.
Any other enquiry than above spec. is welcomed.
