CA type steel agricultural chain

CA type steel agricultural chain is one of the agricultural chain.It is strictly built according to ISO487. These chains are typically applied in combine harvesters, round balers, feed wagon lifts, etc. Attachments are also available (A1, ATT, C5E, C6E, C11E, C13E, C17E, C30E, CPE, A19, F14,F4,K1,K19,K25,K27,).
The main specification includes:CA550,CA555,CA557,CA620,CA2050H,CA2063H.

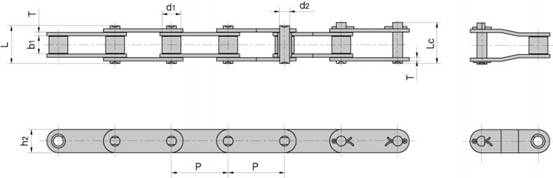

Chain no.	Pitch P mm	Roller Diameter D1 Max mm	Width Between Inner plates B1 Mm	Pin Diameter D2 Max Mm	Pin Length		Plate Diamension		Ultimate Tensile Strength Q MIN KN/LB	Average Tensile Strength KN	Weight Per Meter Km/m
Chain no.	Pitch P mm	Roller Diameter D1 Max mm	Width Between Inner plates B1 Mm	Pin Diameter D2 Max Mm	h L Max mm	h Lc Max mm	H2 Max Mm	H2 Max mm	Ultimate Tensile Strength Q MIN KN/LB	Average Tensile Strength KN	Weight Per Meter Km/m
CA550	41.40	16.87	19.81	7.19	35.0	38.0	19.3	2.80	39.10/8886	51.2	1.94
CA555	41.40	16.87	12.70	7.19	29.1	32.0	19.3	3.1	39.10/8886	56.0	1.72
CA557	41.40	17.78	20.24	8.00	37.4	40.6	23.1	3.10	55.61/12639	74.3	2.60
CA620	42.01	17.91	24.51	7.19	41.8	45.2	20.2	3.25	39.10/8886	55.1	2.35
CA2050H	38.10	11.91	12.70	5.94	29.2	31.6	18.00	3.25	31.10/6996	40.5	1.45
CA2063H	38.10	11.89	12.70	5.94	29.2	34.2	19.30	3.25	31.28/7109	40.5	1.65
