S type steel agricultural chain

S type steel agricultural chain is one of agricultural chain.It is manufactured according to ISO487 for farm equipment. Zinc-plated products and attachments are also available on request. The main specification includes:S32,S42,S45,S52,S55,S55R,S62,S77,S88 etc.

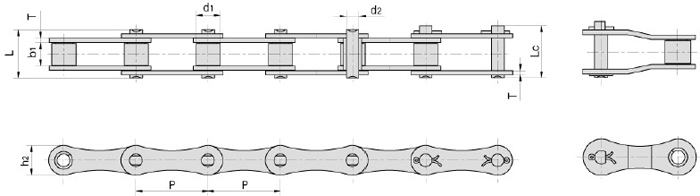

S type steel agricultural chain

ChainĀ  no. Pitch Roller
Diameter
Width
Between
Inner plate
Pin
Diameter
Pin
Length
Plate
Diamension
Ultimate
Tensile
Strength
Average
Tensile
Strength
Weight
Per
Meter
p D1
Max
B1
min
D2
Max
L
Max
Lc
Max
H2
Max
T
Max
Q
Min
q
mm mm Mm Mm mm mm Mm mm KN/LB KN Km/m
S32 29.21 11.43 15.83 4.45 26.70 28.80 13.20 1.80 8.00/1818 21.60 0.86
S42 34.93 14.27 19.05 7.01 .34.30 37.00 19.80 2.80 26.70/6136 50.80 1.60
S45 41.40 15.24 22.23 5.72 .37.70 40.40 17.30 2.80 18.00/4091 36.10 1.66
S52 38.10 15.24 22.23 5.72 37.70 40.40 17.30 2.80 18.00/4091 36.10 1.68
S55 41.40 17.78 22.23 5.72 37.70 40.40 17.30 2.80 18.00/4091 36.10 1.80
S55R 41.40 17.78 22.23 8.90 41.00 44.00 22.40 3.50 45.00/10227 73.10 2.49
S62 41.91 19.05 26.20 5.72 40.30 43.00 17.30 2.50 26.70/6067 36.10 1.87
S77 58.34 18.26 22.23 8.92 43.20 46.40 26.20 4.00 45.00/10227 73.10 2.65
S88 66.27 22.86 28.58 8.90 49.80 53.00 26.20 4.00 45.00/10227 73.10 3.25

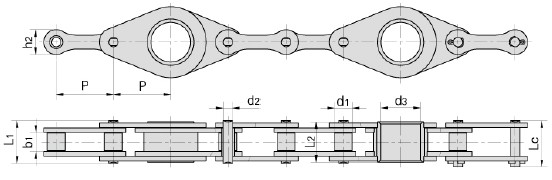

S type steel agricultural chains

ChainĀ  no. Pitch Roller
Diameter
Width
Between
Inner plate
Pin
Diameter
Holllow Pin
Inner
diameter
Pin length Inner
Pltate
depth
Ultimate
Tensile
strength
Average
Tensile
Strength
p D1
Max
B1
min
D2
Max
D3
Max
L1
Max
L2
Max
Lc
Max
H2
max
Q
min
q
mm mm Mm Mm mm mm Mm mm mm KN/LB KN
216BF1 50.8 15.88 17.02 8.28 35.3 37.8 35.8 41.3 22.0 60.0/13636 70.8
CA650F3 50.8 19.05 19.05 9.53 .35.3 40.4 37.8 44.7 25.0 90.0/20454 99.0
