Heavy duty cranked-link chain
Heavy duty cranked-link chain offered by us are manufactured from high quality special heat treated steel alloys. Durable in quality, these heavy duty cranked link chains have long service life. These chains are offered with the facility of length tolerances and lateral clearances that helps it to operate over flame cut or cast tooth sprockets.The main specification includes 2010,2512,2814,3315,3618,4020,4824 etc.

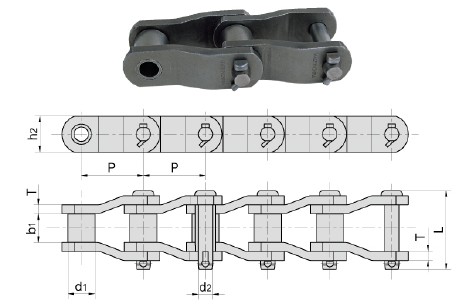

| Chain no. | Pitch | Roller Diameter |
Width Between Inner plate |
Pin Diameter |
Pin Length |
Plate depth |
Plate thickness |
Ultimate Tensile Strength |
Average Tensile Strength |
Weight Per Meter |
| p | D1 Max |
B1 min |
D2 Max |
L Max |
H2 | T | Q Min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | KN/LB | KN | Km/m | |
| 2010 | 63.50 | 31.75 | 38.1 | 15.90 | 90.70 | 47.80 | 7.90 | 250.0/56818 | 270.00 | 13.53 |
| 2512 | 77.90 | 41.28 | 39.6 | 19.08 | 103.40 | 60.50 | 9.70 | 340.0/77272 | 367.20 | 18.40 |
| 2814 | 88.90 | 44.45 | 38.1 | 22.25 | 117.60 | 60.50 | 12.70 | 471.0/105955 | 507.60 | 25.70 |
| 3315 | 103.45 | 45.24 | 49.3 | 23.85 | 134.90 | 63.50 | 14.20 | 550.0/125000 | 594.00 | 27.71 |
| 3618 | 114.30 | 57.15 | 52.3 | 27.97 | 141.20 | 79.20 | 14.20 | 760.0/172727 | 820.80 | 41.20 |
| 4020 | 127.00 | 63.50 | 69.9 | 31.78 | 168.10 | 91.90 | 15.70 | 987.0/224300 | 1069.20 | 48.60 |
| 4824 | 152.40 | 76.20 | 76.2 | 38.13 | 187.50 | 104.60 | 19.00 | 1600.0/363632 | 1700.00 | 69.80 |
