In terms of its construction,motorcycle chain is classified as motorcycle timing chain, motorcycle roller chain, motorcycle o ring chain, motorcycle x ring chain, and motorcycle silent chain (or inverted tooth chain). Motorcycle timing chain is generally used inside motorcycle engine, which is referred as motorcycle bushed chain, balance chain and oil pumps chain (i.e., for high displacement motorcycle). For those motorcycle chains used outside motorcycle engine to drive the back wheels, motorcycle roller chains are widely used, only in a few case, timing chain like 219H is adopted.
| CHAIN NO. | Type | Pitch | Width | Roller | Plate | Pin |
Transverse Pitch C |
Average Ultimate Strength kgf |
Approx Weight kg/m |
||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | |||||||||

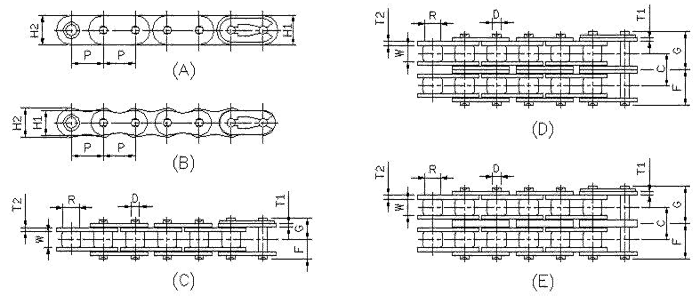

| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | |||||
| ＊25 | B-C | 0.25" | 6.35 | 3.18 | 3.30 | 5.00 | 5.80 | 0.75 | 0.75 | 2.30 | 3.80 | 4.80 | --- | 450 | 0.14 |
| ＊25-2 | B-D | 0.25" | 6.35 | 3.18 | 3.30 | 5.00 | 5.80 | 0.75 | 0.75 | 2.30 | 7.03 | 8.02 | 6.40 | 900 | 0.26 |
| ＊25F | A-C | 0.25" | 6.35 | 3.18 | 3.30 | 5.80 | 5.80 | 0.75 | 0.75 | 2.30 | 3.80 | 4.80 | --- | 450 | 0.15 |
| ＊25H | B-C | 0.25" | 6.35 | 3.18 | 3.30 | 5.00 | 5.80 | 1.00 | 1.00 | 2.30 | 4.50 | 5.10 | --- | 560 | 0.16 |
| ＊25FH | A-C | 0.25" | 6.35 | 3.18 | 3.30 | 5.80 | 5.80 | 1.00 | 1.00 | 2.30 | 4.50 | 5.10 | --- | 560 | 0.17 |
| ＊04M | A-C | 0.275" | 7.0 | 3.65 | 4.00 | 6.80 | 6.80 | 1.00 | 1.15 | 2.70 | 4.90 | --- | --- | 800 | 0.24 |
| ＊04M-2 | A-E | 0.275" | 7.0 | 3.65 | 4.00 | 6.80 | 6.80 | 1.00 | 1.15 | 2.70 | 8.75 | --- | 7.80 | 1600 | 0.56 |
| ＊05CA | A-C | 0.315" | 8.00 | 4.80 | 5.00 | 7.55 | 7.55 | 1.00 | 1.35 | 3.15 | 5.80 | --- | --- | 920 | 0.38 |
| 05E | A-C | 0.315" | 8.00 | 4.70 | 5.65 | 7.60 | 7.60 | 1.00 | 1.25 | 3.05 | 5.95 | 7.15 | --- | 920 | 0.33 |
| 05EH | A-C | 0.315" | 8.00 | 4.70 | 5.65 | 7.60 | 7.60 | 1.28 | 1.53 | 3.05 | 6.15 | --- | --- | 980 | 0.41 |
| ＊05T | A-C | 0.315" | 8.00 | 4.70 | 4.73 | 7.60 | 7.60 | 1.00 | 1.25 | 3.05 | 5.50 | 6.90 | --- | 920 | 0.32 |
| ＊35F | A-C | 0.375" | 9.525 | 4.76 | 5.08 | 8.70 | 8.70 | 1.25 | 1.25 | 3.58 | 5.88 | 6.70 | --- | 1150 | 0.41 |
| ＊35-2 | B-D | 0.375" | 9.525 | 4.76 | 5.08 | 7.60 | 9.00 | 1.20 | 1.20 | 3.59 | 10.80 | 12.00 | 10.10 | 2050 | 0.69 |
| 06B | A-C | 0.375" | 9.525 | 5.72 | 6.35 | 8.10 | 8.10 | 1.00 | 1.20 | 3.28 | 6.10 | 7.40 | --- | 1050 | 0.39 |
| 06B-2 | A-E | 0.375" | 9.525 | 5.72 | 6.35 | 8.10 | 8.10 | 1.00 | 1.25 | 3.28 | 11.20 | 12.30 | 10.24 | 1900 | 0.74 |
| 06BA | A-C | 0.375" | 9.525 | 5.72 | 6.35 | 8.10 | 8.10 | 1.25 | 1.25 | 3.28 | 6.50 | 7.45 | --- | 1050 | 0.40 |
| 06BH | A-C | 0.375" | 9.525 | 5.72 | 6.35 | 8.10 | 8.10 | 1.25 | 1.50 | 3.28 | 6.93 | 8.17 | --- | 1250 | 0.45 |
| 06BH-2 | A-E | 0.375" | 9.525 | 5.72 | 6.35 | 8.10 | 8.10 | 1.25 | 1.50 | 3.28 | 12.60 | 14.00 | 11.40 | 2500 | 0.8 |
| ＊06D | A-C | 0.375" | 9.525 | 5.72 | 6.35 | 9.50 | 9.50 | 1.25 | 1.30 | 4.45 | 6.58 | 7.75 | --- | 1050 | 0.52 |
| ＊06D-2 | A-E | 0.375" | 9.525 | 4.20 | 6.35 | 9.50 | 9.50 | 1.25 | 1.55 | 4.45 | 10.90 | --- | 9.50 | 2100 | 1.03 |
| ＊06D-2 SP(W5.65) |
A-E | 0.375" | 9.525 | 5.65 | 6.35 | 9.50 | 9.50 | 1.30 | 1.40 | 4.45 | 12.40 | --- | 11.0 | 2100 | 1.04 |
| 06G | A-C | 0.375" | 9.525 | 5.20 | 7.06 | 9.26 | 9.26 | 1.40 | 1.65 | 3.96 | 6.93 | --- | --- | 1240 | 0.47 |
Notes:
1) The color available for all the above timing chains is gold, silver, black, blue, yellow or self-color. While inquiring, please specify the chain color and links per length.
2) If all chain parts are required to be gold (or silver), please indicate such in your inquiry.
3) If the chain is to be endless without connecting link (or master link), please specify.
4) All the chain in individually packed with color box suitable for retailing.
