Bucket elevator chain

Bucket elevator chain also reffered as cement chain.It is widely used for cement industry. Bucket elevator chain has many types.Tri-resistance P35 chain, Tri-resistance bucket elevator chain,etc.

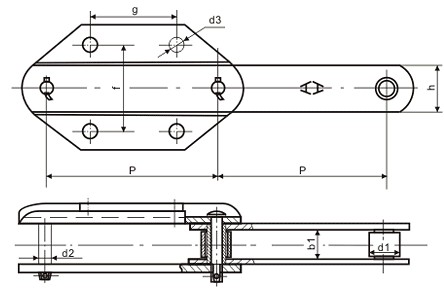

Bucket elevator chain


Chain No.
Pitch
P
mm
Width between
Inner plates
b1
mm
Roller
Diameter
d1
mm
Pin
Diameter
d2
mm
Plate
Depth
h
mm

f
mm
Hole
Distance
g
mm
Hole
Diameter
d3
mm

b3
mm
Ultimate
Tensile
Strength
Q
KN
SSN75-H4 75 30 29 14.52 38.1 75 75 14 39.9 200
SSN75-H4A1 75 30 32 15 40 75 75 14 40 170
SSN75-H4A3 75 30 29 14.52 38.1 80 75 14 38.5 200
SSN75-H4A4 75 32 30 15 41 75 75 14 40 167
SSN75-H4A5 75 37.1 34.9 16 44.5 80 75 14 46.5 250
SSN76.2-H4 76.2 37.1 34.9 15.88 44.5 80 75 14 46.5 250
SSN100-H4 100 66.3 52 27 80 100 100 18 67.5 600
SSN100-H4A1 100 37.1 34.9 16 44.5 100 100 16 46.5 250
SSN100-H4A2 100 57.2 50.8 24 63.5 100 100 16 62 520
SSN100-H4A3 100 51.4 40.1 20 54 100 100 16 58 387
SSN100-H4A4 100 57.5 50.8 24 64 100 100 16 63.5 520
SSN100-H4A5 100 47 42 21 62 100 100 18 55 315
SSN100-H4A6 100 66.5 57.15 25 68/76.2 110 100 16 68.5 588
SSN125-H4 125 57.2 50.8 24 63.5 110 125 22(18) 63.5 520
SSN125-H4A1 125 66.7 57.2 28 76.2 110 125 18 77 784
SSN125-H4A2 125 70 62 33 81/90 110 125 18(22) 78.5 980
SSN125-H4A3 125 54 50 25 72 100 125 16.5 64 588
SSN125-H4A4 125 66 60 30 82/90 110 125 17 75 705
SSN150-H4 150 66.7 57.2 28 76.2 140 150 22 77 784
SSN150-H4A1 150 30 31.8 14.52 38.1 75 75 14 39.9 200
SSN150-H4A2 150 37.1 34.9 16 44.5 75 75 14 46.5 250
SSN150-H4A3 150 30 29 14.52 38.1 80 75 14 37.6 200
SSN150-H4A4 150 83 72 37 100/110 140 150 22 85 1274
SSN150-H4A5 150 70 62 33 86/90 140 150 22 78.5 980
SSN150-H4A6 150 37 35 18 50 80 75 14 48 250
SSN152.4-H4 152.4 36.5 36 15.5 50 70 75 14 # 190
SSN152.4-H4A1 152.4 37.1 34.9 16 44.5 80 75 14 46.5 250
SSN160-H4 160 56 60 30 82 100 80 14 67 740
SSN200-H4 200 37.1 34.9 16 44.5 100 100 16 46.5 250
SSN200-H4A1 200 52 44.5 19 60 80 100 18 # 360
SSN200-H4A2 200 52 41 20 60 80/95 100 18 # 400
SSN200-H4A3 200 58 48.5 22 74 80 100 18 # 500
SSN200-H4A4 200 57.2 50.8 24 65 100 100 16 62 447
SSN200-H4A5 200 52 44.5 21 66 80 100 18 # 392
SSN200-H4A6 200 58 48.5 24 78 80 100 18 # 500
SSN200-H4A7 200 47 42 21 62 100 100 16 55 400
SSN200-H4A8 200 37.1 34.9 17 45.5 100 100 16 46.5 290
SSN200-H4A10 200 66.7 57.2 28 76.2 110 125 18 77 784
SSN200-H4A11 200 51 44.45 21 60 120 100 18 57 340
SSN200-H4A12 200 51 50 24 75 120 100 18 57 450
SSN250-H4 250 66.7 57.2 28 76.2 110 125 18 77 700
SSN250-H4A1 250 67.4 63.5 31.75 90 100 140 18 # 73.5
SSN250-H4A2 250 57.2 50.8 24 63.5 110 125 18 62 456
SSN300-H4 300 55 60 30 82 160 120 17 # 750
SSN300-H4A1 300 57 50.8 26 72 140 150 22 63.5 550

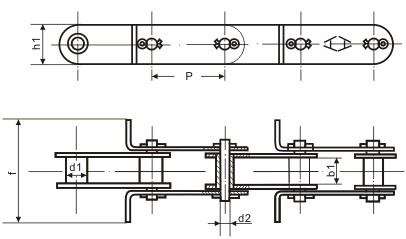

Bucket elevator chain


Chain No.
Pitch
P
mm
Width between
Inner plates
b1
mm
Roller
diameter
d1
mm
Pin
diameter
d2
mm
Plate
depth
h1
mm

f
mm
Ultimate
Tensile
Strength
Q
KN
SSS101.6-T2 101.6 28 22.2 11.3 28 184 135
SSS125-T2 125 27 25 12 36 145 80
SSS125-T2A1 125 27 25 12 36 185 80
SGS160-T2 160 34 35 22 50 230 160
SSS160-T2 160 36 36 18 51 300 160
SSS200-T2A1 200 52 44 20 60 370
SSS200-T2A2 200 48 50 25 72 380 310
SSS200-T2A3 200 42 42 21 62 370 224
SSS200-T2A4 200 47 50 25 72 310 315
SSS200-T2A5 200 48 50 25 72 480 310
STS66.68-L2 66.68 27 22.3 12.6 29 128.5 100
STS66.68-L2A1 66.68 27 25 15 36 131.5 140
STS100-L2 100 28 22 16 38 230 112.7
STS100-L2A1 100 28 22 16 38 180 112.7
STS100-L2A2 100 28 22 16 38 210 112.7
STS100-L2A3 100 28 22 16 46 230 115
STS100-L2A5 100 28 22 16 38 140 112.7
STS125-L2 125 36 25 18 51 300 220
STS150-L2 150 36 26 18 45 230 140
STS150-L2A1 150 46 30 20 50 480 -
STS150-L2A2 150 46 30 20 50 230 224
STS150-L2A3 150 36 26 18 45 330 -
SSS150-L2 150 43 31 18 40 233 100
SSS150-L2A1 150 43 32 19 45 228 140
SSS200-L2A1 200 42 42 21 62 370 350
SSS200-L2A2 200 48 50 25 72 480 450
SSS200-L2A3 200 48 50 25 72 600 450

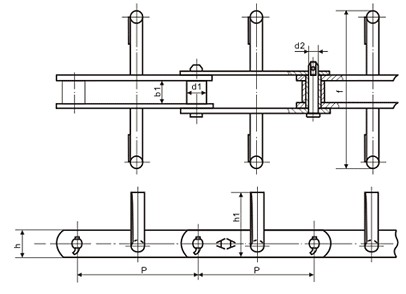

Bucket elevator chain

Chain No. Pitch
P
mm
Width between
Inner plates
b1
mm
Roller
diameter
d1
mm
Pin diameter
d2
mm
Plate depth
h
mm
h1
mm
f
mm
Ultimate
Tensile
Strength
Q
KN
SSN125-U 125 27 25 12 36 100 180 80
SSN150-U 150 36 35 16 50 101 248 190
SSN150-UA1 150 30 31.8 14.52 38.1 100 250 175
SSN152.4-U 152.4 36 36 15.5 50 105 235 190
SSN152.4-UA1 152.4 36 36 15.5 50 85 171 190
SSN152.4-UA3 152.4 37.5 38 16 45 90 230 160
SSN160-U 160 36 36 18 51 120 240 160
SSN200-U 200 36.5 34.9 16 45 110 242.5 186
SSN200-UA1 200 51.4 44.5 19 50.8 112.1 330 395
SSN200-UA2 200 42 42 21 62 140/180 320/480 350
SSN200-UA3 200 60 50 25 70 184 360 395
SSN200-UA4 200 51.8 42 21 60 210 330 224
SSN200-UA5 200 60 60 30 82 221 330 450
SSN200-UA6 200 52 40 19 50 170 400 225
SSN200-UA8 200 51.8 42 19 60 140 320 224
SSN250-U 250 57.2 50.8 24 63.5 230 425 500
SSN250-UA1 250 47 50 25 72 230 560 450
SSN300-U 300 67.4 63.5 31.75 90 200 470 735
