Spike chain

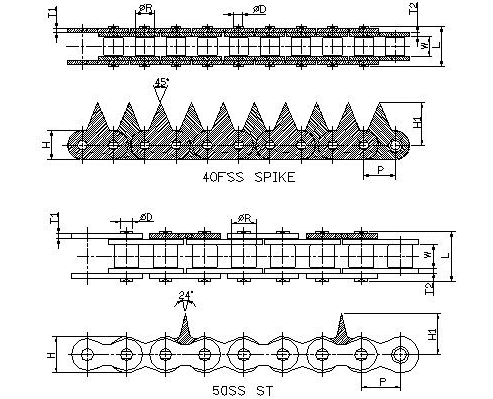

Spike chain is the roller chain with tine.The main specification is 40FSS spike and 50SS ST.And others we can manufacture as per customer’s darwing or sample.
| CHAIN NO. | Pitch | Width | Roller | Plate | Pin | Max. Allowable Load kgf |
Approx Weight kg/m |
|||||
| P | W | Dia | Height | Thickness | Dia | Lengths | ||||||
| inch | mm | mm | R | H | H1 | T1 | T2 | D | L | |||
| 40FSS SPIKE | 1/2" | 12.700 | 7.94 | 7.92 | 12.00 | 17.40 | 1.50 | 1.50 | 3.96 | 16.40 | 45 | 0.72 |
| 50SS ST | 5/8" | 15.875 | 9.53 | 10.16 | 14.80 | 16.90 | 2.00 | 2.00 | 5.06 | 20.25 | 70 | 1.07 |
