Double flex chain
This is a chain designed to operate in two planes. It's an excellent conveyor chain which has many uses in a multitude of industries. DF-3500 Double Flex chain articulates on two planes with a large sliding area to decrease wear on chain and sliding surface and provides maximum flexibility for both horizontal and vertical movement. DF-3500 and DF-3910 have induction hardened inner link plates and cup-shaped outer link plates. DF-3498 has straight outer link plates for greater flexibility.

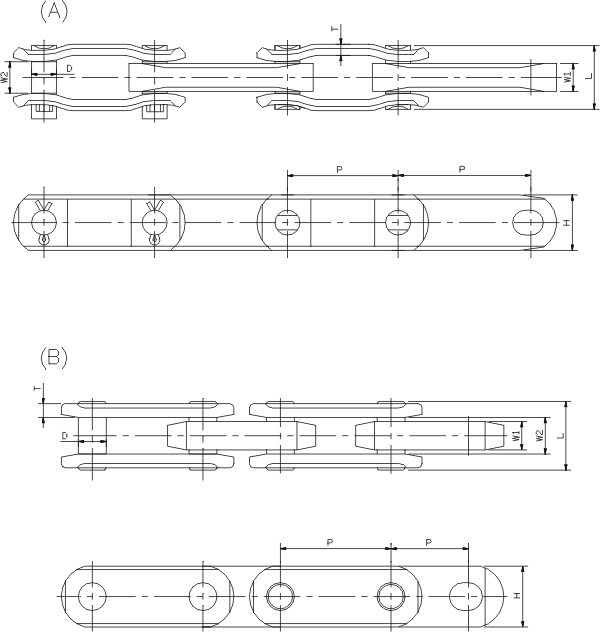

| CHAIN NO. (ANSI) |
Type | Pitch | Dimension | Minimum flex Radius |
Average Tensile Strength kgf |
Average Allowable WorkLoad kgf |
Approx Weight kg/m |
|||||
| P | W1 | W2 | D | L | H | T | ||||||
| DF3500 | A | 63.5 76.2 |
16.00 | 17.50 | 14.50 | 36.5 | 31.8 | 6.4 | 508 | 21818 | 1818 | 4.92 |
| DF3498 | B | 44.45 63.5 |
16.28 | 19.80 | 15.67 | 39.8 | 34.9 | 8.0 | 458 | 21735 | 1818 | 5.82 |
| DF3910 | A | 76.2 76.2 |
16.00 | 17.50 | 14.50 | 36.5 | 31.8 | 6.4 | 559 | 21818 | 1818 | 4.92 |
