Heavy type chain

Heavy type chain are also referred as heavy duty roller chain.The plate of the roller chain is thicker than normal plate.Heavy type chain provides
increased fatigue resistance for those drives subjected to heavy shock loads, multiple stops/starts or reversing as found in mining, quarrying, rock drilling, forestry and construction machinery.The specification is like,60H,80H,100H,120H,140H,160H,etc.

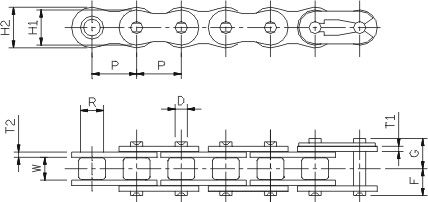

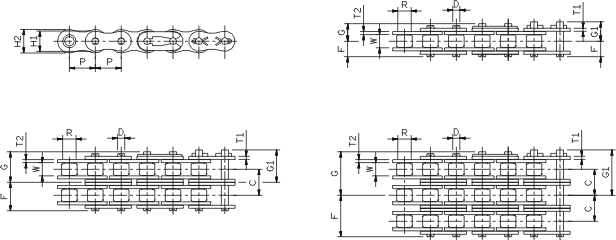

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate				Pin				Transverse Pitch	Average  Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia	Lengths
	inch	mm	mm	R	H1	H2	T1	T2	D	F	G	G1	C
25H	1/4"	6.35	3.18	3.30	5.00	5.80	1.00	1.00	2.30	4.50	5.10	---	---	560	0.16
50H	5/8"	15.875	9.53	10.16	13.00	14.80	2.40	2.40	5.06	10.90	12.40	12.90	---	3100	1.12
50H-2	5/8"	15.875	9.53	10.16	13.00	14.80	2.40	2.40	5.06	20.65	22.25	22.75	---	6200	2.25
60H	3/4"	19.05	12.70	11.91	15.50	17.50	3.10	3.10	5.95	14.10	15.70	16.60	---	4400	1.81
60H-2	3/4"	19.05	12.70	11.91	15.50	17.50	3.10	3.10	5.95	27.20	28.80	29.70	26.11	8800	3.57
60H-3	3/4"	19.05	12.70	11.91	15.50	17.50	3.10	3.10	5.95	40.20	41.80	42.70	26.11	13200	5.16
80H	1"	25.40	15.88	15.88	20.80	24.00	3.90	3.90	7.94	17.90	---	20.80	---	8000	2.95
80H-2	1"	25.40	15.88	15.88	20.80	24.00	3.90	3.90	7.94	34.20	---	37.10	32.59	16000	5.85
80H-3	1"	25.40	15.88	15.88	20.80	24.00	3.90	3.90	7.94	50.50	---	53.40	32.59	24000	8.32
100H	1-1/4"	31.75	19.05	19.05	24.80	30.10	4.70	4.70	9.52	21.70	---	24.90	---	12000	4.45
100H-2	1-1/4"	31.75	19.05	19.05	24.80	30.10	4.70	4.70	9.52	41.25	---	44.45	39.09	24000	8.34
100H-3	1-1/4"	31.75	19.05	19.05	24.80	30.10	4.70	4.70	9.52	60.80	---	64.00	39.09	36000	12.03
120H	1-1/2"	38.10	25.40	22.23	30.00	35.00	5.60	5.60	11.10	26.98	---	30.57	---	16000	6.78
120H-2	1-1/2"	38.10	25.40	22.23	30.00	35.00	5.60	5.60	11.10	51.40	---	55.05	48.90	32000	13.45
120H-3	1-1/2"	38.10	25.40	22.23	30.00	35.00	5.60	5.60	11.10	75.90	---	79.45	48.90	48000	20.13
140H	1-3/4"	44.45	25.40	25.40	36.20	42.00	6.40	6.40	12.70	28.90	---	33.10	---	21500	8.12
140H-2	1-3/4"	44.45	25.40	25.40	36.20	42.00	6.40	6.40	12.70	55.15	---	59.05	52.20	43000	16.10
140H-3	1-3/4"	44.45	25.40	25.40	36.20	42.00	6.40	6.40	12.70	81.1	---	85.30	52.20	64500	24.02
160H	2"	50.80	31.75	28.58	41.40	48.00	7.20	7.20	14.28	34.15	---	38.85	---	27500	10.87
160H-2	2"	50.80	31.75	28.58	41.40	48.00	7.20	7.20	14.28	65.10	---	69.80	61.90	55000	20.85
160H-3	2"	50.80	31.75	28.58	41.40	48.00	7.20	7.20	14.28	96.05	---	100.75	61.90	82500	30.83
180H	2-1/4"	57.15	35.71	35.71	46.70	54.20	8.00	8.00	17.45	38.10	---	43.80	---	36000	15.20
180H-2	2-1/4"	57.15	35.71	35.71	46.70	54.20	8.00	8.00	17.45	72.68	---	78.38	69.16	72000	30.10
180H-3	2-1/4"	57.15	35.71	35.71	46.70	54.20	8.00	8.00	17.45	107.26	---	112.96	69.16	108000	45.00
200H	2-1/2"	63.50	38.10	39.68	51.80	60.10	9.50	9.50	19.84	42.75	---	50.05	---	52000	17.8
200H-2	2-1/2"	63.50	38.10	39.68	51.80	60.10	9.50	9.50	19.84	81.91	---	89.20	78.31	104000	35.20
200H-3	2-1/2"	63.50	38.10	39.68	51.80	60.10	9.50	9.50	19.84	121.06	---	128.36	78.31	156000	52.50

CHAIN NO.	Pitch		Width	Roller	Plate				Pin			Average  Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia	Lengths
	inch	mm	mm	R	H1	H2	T1	T2	D	F	G
08BH	0.5"	12.70	7.75	8.50	11.20	12.20	2.00	2.00	4.44	9.30	10.70	2400	0.85
10BH	0.625""	15.875	9.65	10.16	13.00	14.60	2.00	2.00	5.06	10.10	11.65	3100	1.01
12BH	0.75"	19.05	11.68	12.07	16.00	16.00	2.40	2.40	6.12	12.30	13.80	4500	1.42
