Hollow pin chain

For food handling conveyors, Hollow Pin Chains are available in ANSI standard short pitch series (40HP - 80HP), double pitch series with standard rollers (C2040HP - C2080HP), and large rollers (C2042HP - C2082HP). Attachments or cross-rods can be inserted at any desired spacing, which provided great design versatility. Changes can be made without removing the chain from the conveyor.

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate				Pin				Average  Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia		Lengths
	inch	mm	mm	R	H1	H2	T1	T2	D	d(min)	F	G
40HP	1/2"	12.70	7.94	7.92	10.20	11.80	1.50	1.50	5.58	4.00	7.90	9.4	1300	0.5
50HP	5/8"	15.875	9.53	10.16	13.00	14.80	2.00	2.00	7.01	5.12	9.90	11.65	2000	0.8
60HP	3/4"	19.05	12.70	11.91	15.50	17.50	2.40	2.40	8.12	5.99	12.40	14.25	3050	1.18
80HP	1"	25.40	15.88	15.88	20.80	24.00	3.10	3.10	11.27	8.02	16.30	17.75	5800	2.10
08BHP	1/2"	12.70	7.75	8.51	10.60	11.80	1.50	1.50	6.11	4.50	8.20	9.30	1500	0.63

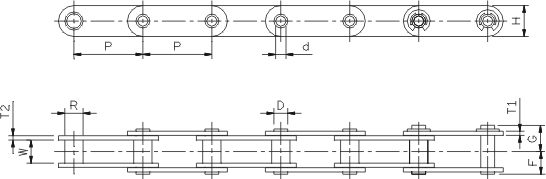

DOUBLE PITCH HOLLOW PIN CHAIN

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate			Pin				Average  Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height	Thickness		Dia		Lengths
	inch	mm	mm	R	H	T1	T2	D	d(min)	F	G
C2040HP	1"	25.40	7.94	7.92	11.70	1.50	1.50	5.58	4.00	7.90	9.40	1300	0.45
C2050HP	1-1/4"	31.75	9.53	10.16	14.60	2.00	2.00	7.01	5.12	9.90	11.65	2000	0.74
C2060HP	1-1/2"	38.10	12.70	11.91	17.10	2.40	2.40	8.12	5.99	12.40	14.25	3050	1.10
C2080HP	2"	50.80	15.88	15.88	23.00	3.10	3.10	11.27	8.02	16.30	17.75	5800	1.95

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate			Pin				Average  Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height	Thickness		Dia		Lengths
	inch	mm	mm	R	H	T1	T2	D	d(min)	F	G
C2042HP	1"	25.40	7.94	15.88	11.70	1.50	1.50	5.58	4.00	7.90	9.40	1300	0.78
C2052HP	1-1/4"	31.75	9.53	19.05	14.60	2.00	2.00	7.01	5.12	9.90	11.65	2000	1.23
C2062HP	1-1/2"	38.10	12.70	22.23	17.10	2.40	2.40	8.12	5.99	12.40	14.25	3050	1.76
C2082HP	2"	50.80	15.88	28.58	23.00	3.10	3.10	11.27	8.02	16.30	17.75	5800	3.14

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate				Pin				Average  Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia		Lengths
	inch	mm	mm	R	H1	H2	T1	T2	D	d(min)	F	G
A2040HP	1"	25.40	7.94	7.92	10.10	11.70	1.50	1.50	5.58	4.00	7.90	9.40	1300	0.43
A2050HP	1-1/4"	31.75	9.53	10.16	12.60	14.60	2.00	2.00	7.01	5.12	9.90	11.65	2000	0.72

HP chain standard is rollerless,R indicates bushing diameter.
