Hollow pin conveyor chains

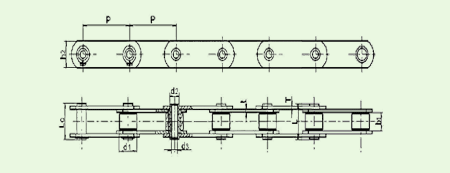

Hollow pin conveyor chains are widely used in industry.They are usually produced as per customers’ different drawing or other request.
|
Chain No. |
Pitch P mm |
Roller diameter d1 max mm |
Width between inner plates b1 min mm |
Pin diameter |
Pin length |
Inner plate depth h2 max mm |
Plate thickness t/T max mm |
Ultimate tensile strength Q min KN/LB |
Average tensile strength Qo KN |
Weight per meter q kg/m |
||
| d2 max mm |
d3 min mm |
L max mm |
Lc max mm |
|||||||||
| HB38.1F2 | 38.10 | 25.40 | 12.70 | 9.50 | 6.60 | 26.60 | 28.00 | 19.10 | 2.30 | 20.0/4545 | 22.4 | 2.07 |
| HB50.8F3 | 50.80 | 30.00 | 16.00 | 14.00 | 9.00 | 36.40 | 37.50 | 25.50 | 3.10 | 42.0/9545 | 47.0 | 3.20 |
| HB75 | 75.00 | 40.00 | 22.00 | 18.00 | 12.20 | 42.00 | 44.00 | 35.00 | 4.00 | 60.0/13636 | 72.0 | 5.57 |
| HB76.2 | 76.20 | 31.75 | 15.50 | 12.70 | 9.50 | 35.50 | 37.00 | 26.00 | 4.00 | 42.0/9545 | 49.2 | 3.25 |
| HB76.2F2 | 76.20 | 47.60 | 20.00 | 24.00 | 18.50 | 44.50 | 46.10 | 40.00 | 5.0/4.0 | 79.0/17953 | 92.5 | 6.77 |
| HB80 | 80.00 | 50.00 | 20.00 | 24.00 | 18.50 | 44.50 | 46.10 | 40.00 | 5.0/4.0 | 79.0/17953 | 92.5 | 6.81 |
| HP100 | 100.00 | 45.00 | 22.00 | 16.00 | 12.00 | 46.00 | 47.50 | 35.00 | 5.00 | 75.0/17044 | 90.0 | 6.20 |
| HP100F1 | 100.00 | 45.00 | 22.00 | 18.00 | 12.00 | 47.20 | 48.50 | 35.00 | 5.00 | 75.0/17044 | 90.0 | 6.15 |
| HP101.6F1 | 101.60 | 47.60 | 19.00 | 19.00 | 13.20 | 46.20 | 48.00 | 40.00 | 5.0/4.0 | 53.0/12045 | 58.2 | 6.09 |
| HP101.6F2 | 101.60 | 66.70 | 25.40 | 26.90 | 20.10 | 59.20 | 60.70 | 51.00 | 7.1/5.1 | 150.0/34088 | 160.0 | 14.23 |
| HP152 | 152.40 | 66.70 | 25.40 | 26.90 | 19.56 | 57.20 | 59.50 | 50.80 | 7.1/5.1 | 94.0/21362 | 107.8 | 9.90 |
| HP152.4F1 | 152.40 | 47.60 | 19.00 | 19.00 | 13.20 | 46.20 | 48.00 | 40.00 | 5.0/4.0 | 54.0/12270 | 59.5 | 5.00 |
