Double plus chain
Double plus chain is also refferred as. Products are available both in carbon steel and stainless steel, and are widely applied in the electronics industry to transport consumer products like TVs, VCRs and radios, etc. Rollers can be plastic, carbon steel and stainless steel ones. Safety is ensured by the extra-large, engineering plastic center rollers which allow for installation on a chain cover. For harsh working environment, extra-large steel rollers are recommended.

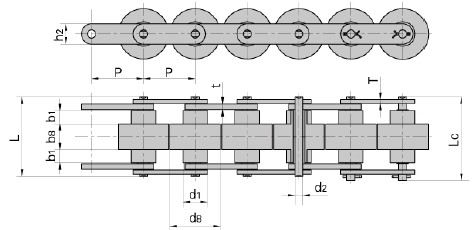

| Chain no. | Pitch | Roller dimension | Pin diamension |
Pin length |
Plate dimension |
Weight Per Meter |
||||||
| p | D1 Max |
D8 max |
B1 Max |
B8 max |
D2 max |
L max |
Lc max |
H2 max |
T max |
t max |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Km/m | |
| BS25-C206B | 19.05 | 11.91 | 18.3 | 4.00 | 8.0 | 3.28 | 24.0 | 25.6 | 8.20 | 1.30 | 1.50 | 0.52 |
| BS25-C208A | 25.40 | 15.88 | 24.6 | 5.70 | 10.3 | 3.96 | 31.0 | 32.8 | 11.70 | 1.50 | 1.50 | 0.79 |
| BS25-C210A | 31.75 | 19.05 | 30.6 | 7.10 | 13.0 | 5.08 | 39.5 | 41.2 | 15.00 | 2.03 | 2.03 | 1.36 |
| BS25-C212A | 38.10 | 22.23 | 36.6 | 8.50 | 15.5 | 5.94 | 48.8 | 51.5 | 18.00 | 3.25 | 3.25 | 2.19 |
| BS25-C216A | 50.80 | 28.58 | 49.0 | 11.00 | 21.5 | 7.92 | 66.2 | 70.0 | 24.00 | 4.00 | 5.00 | 4.06 |
| BS30-C206B | 19.05 | 9.00 | 18.3 | 4.50 | 9.1 | 3.28 | 26.3 | 29.6 | 7.28 | 1.30 | 1.50 | 0.50 |
| BS30-C2008A | 25.40 | 11.91 | 24.6 | 6.10 | 12.5 | 3.96 | 35.6 | 39.5 | 9.60 | 1.50 | 2.00 | 0.83 |
| BS30-C210A | 31.75 | 14.80 | 30.6 | 7.50 | 15.0 | 5.08 | 43.0 | 47.1 | 12.20 | 2.00 | 2.40 | 1.27 |
| BS30-C212A | 38.10 | 18.00 | 37.0 | 9.75 | 20.0 | 5.94 | 58.1 | 62.7 | 15.00 | 3.00 | 4.00 | 2.14 |
| BS30-C216A | 50.80 | 22.23 | 49.0 | 12.00 | 25.2 | 7.92 | 71.9 | 77.3 | 18.60 | 4.00 | 5.00 | 3.55 |
