MC series conveyor chain

MC series conveyor chain includes four types and the main specification is MC28, MC56, MC112,MC224 etc.

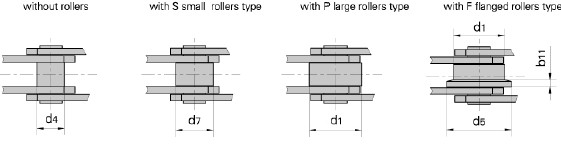

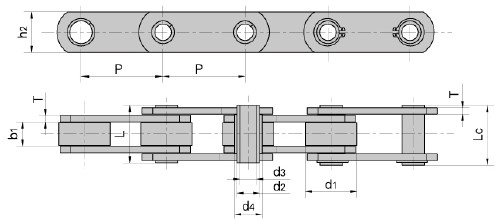

Chain No.	Breaking Loading Q (kN)	Pitch P mm	Width Between Inner Plate B1 Min mm	Pin Diameter		Pin length		Plate Thickness T Max mm	Plate Depth H2 Max mm	Bush Diameter D4 Max mm	Roller dimension
				D2 Max mm	D3 Min mm	L Max mm	Lc Max mm				D1 Max mm	D7 Max mm	D5 Max mm		B11 Max mm
MC28	28	63	20.0	13.0	8.2	36.0	38.5	3.5	25.0	17.5	36.0	25.0	45.0	4.5
		80
		100
		125
		160
MC56	56	80	24.0	15.5	10.2	45.0	47.5	4.0	35.0	21.0	50.0	30.0	60.0	5.0
		100
		125
		160
		200
		250
MC112	112	100	32.0	22.0	14.3	62.5	64.3	6.0	50.0	29.0	70.0	42.0	85.0	7.0
		125
		160
		200
		250
		315
MC224	224	160	43.0	31.0	20.3	83.0	85.5	8.0	70.0	41.0	100.0	60.0	120.0	10.0
		200
		250
		315
		400
		500
