Lumber conveyor chain
Lumber conveyor chain is widely used for wood factory.The main specification includes 81X,81XH,81XHH,and 3939 lumber conveyor chain.

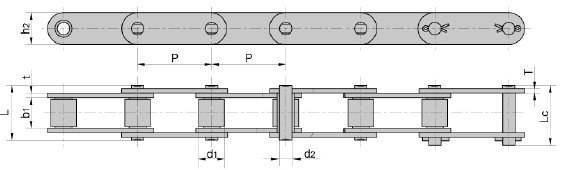

Chain no. |
Pitch |
Roller |
Width |
Pin |
Pin |
Inner |
Plate |
Ultimate |
Average |
Weight |
|
| p | D1 Max |
B1 min |
D2 Max |
L max |
Lc max |
H2 max |
T | Q Min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | KN/LB | KN | Km/m | |
| 81X | 66.27 | 23.00 | 27.00 | 11.10 | 49.0 | 53.5 | 28.50 | 4.00 | 106.7/24250 | 128.9 | 3.78 |
| 81XH | 66.27 | 23.00 | 27.78 | 11.10 | 60.7 | 65.1 | 31.35 | 7.94/5.55 | 151.9/34523 | 175.7 | 5.88 |
| 81XHH | 66.27 | 23.00 | 27.78 | 11.10 | 65.6 | 70.0 | 31.35 | 7.94 | 191.1/43432 | 212.6 | 6.70 |

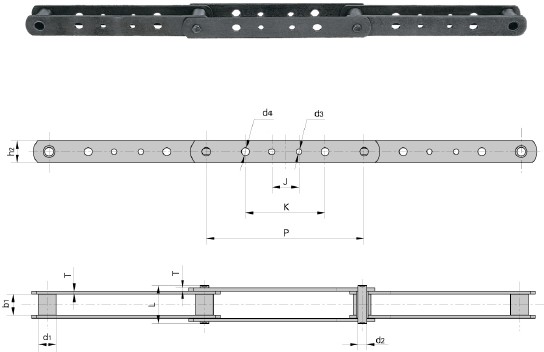

Chain no. |
Pitch | Roller Diameter |
Width Between Inner plate |
Pin dimension |
Plate dimension | Ultimate Tensile Strength |
Weight Per Meter |
|||||
| p | D1 Max |
B1 min |
D2 Max |
L Max mm |
H2 max |
D3 max |
D4 max |
J Max |
K Max |
Q min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Km/m | |
| 3939 | 203.2 | 23.00 | 27.00 | 11.1 | 49.0 | 28.58 | 7.2 | 7.2 | 38.1 | 101.6 | 115.58/26268 | 2.45 |
