Sharp top chain

Sharp top chain,also referred to as sawmill chain or sticker chain,is used primarily for conveying purposes in the timber and pulp industries.It is made of top grade materials to BS/DIN or ANSI standard sharp top chains provide the greater hardness necessary to resist corrosion and oxidation while maintaining strength at high temperatures. Solid center plates reduce failure due to sawdust and chip packing. We also offer precision ground flat bottom chains that reduce wear and damage to your chain bed and distribute loads evenly.
Flat-top chain



 CHAIN NO. Pitch Width Roller Plate Pin  Transverse
Pitch
Average
 Ultimate
Strength
kgf
Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H H1 T1 T2 T3 D L C

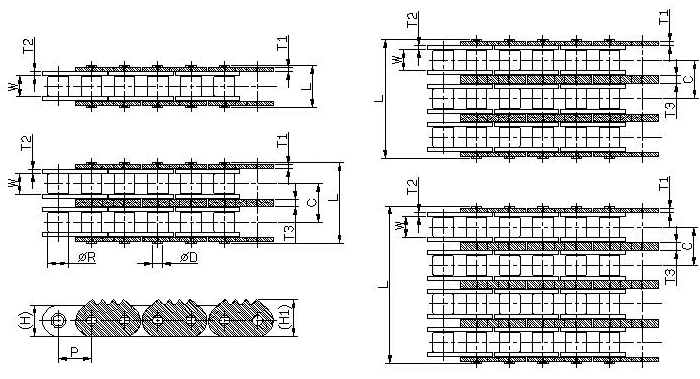

80F ST4 1" 25.40 16.30 15.88 24.00 28.48 3.10 3.10 --- 7.94 32.25 --- 7800 3.61
80F-2 ST4 1" 25.40 16.30 15.88 24.00 28.48 3.10 3.10 6.00 7.94 61.10 29.30 15600 6.96
80F-3 ST4 1" 25.40 16.30 15.88 24.00 28.48 3.10 3.10 6.00 7.94 90.50 29.30 23400 9.51
80F-4 ST4 1" 25.40 16.30 15.88 24.00 28.48 3.10 3.10 6.00 7.94 119.80 29.30 31200 12.37
80F-2 ST4 HD 1" 25.40 16.30 15.88 24.00 28.48 6.00 3.10 6.00 7.94 67.53 29.30 15600 7.12

80F-2
SST4 HD

1" 25.40 16.30 15.88 24.00 28.48 4.00 4.00 4.70 7.94 64.78 29.30 15600 6.89

* HD : Heavy Duty Type
* Machine Bottom is available when required
* Sideplate height could be grounded(machine bottom) to requested dimension
Number in parentheses is the dimension before ground.

 CHAIN NO. Pitch Width Roller Plate Pin  Transverse
Pitch
Average
 Ultimate
Strength
kgf
Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H H1 T1 T2 T3 D L C

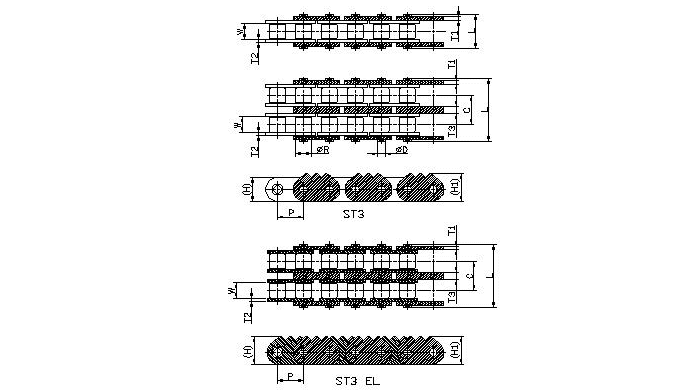

100F ST3 1-1/4" 31.75 19.05 19.05 28.90 34.15 4.70 4.00 --- 9.52 41.60 --- 11600 7.05
100F-2 ST3 1-1/4" 31.75 19.05 19.05 28.90 34.15 4.00 4.00 7.70 9.52 77.00 35.80 23200 12.80
100F-2 ST3 EL 1-1/4" 31.75 19.05 19.05 34.15 34.15 4.00 4.00 7.70 9.52 77.00 35.80 23200 13.62

* Machine Bottom is available when required
* Sideplate height could be grounded(machine bottom) to requested dimension
Number in parentheses is the dimension before ground.

 CHAIN NO. Pitch Width Roller Plate Pin Average
 Ultimate
Strength
kgf
Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H H1 H2 T1 T2 D L

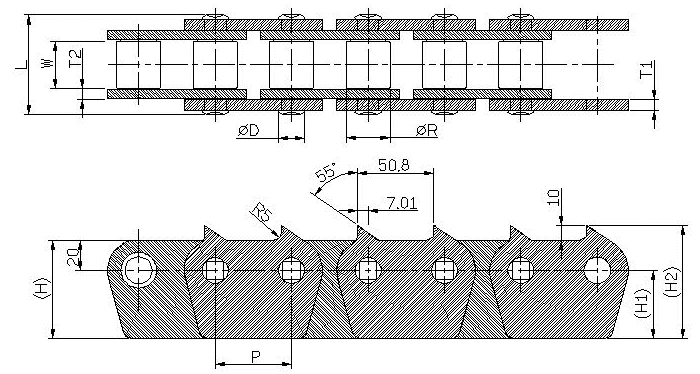

32B SL 2" 50.80 31.60 29.21 42.20 45.01 75.01 7.00 7.00 17.81 66.20 27500 13.45
32B TSL 2" 50.80 17.60 29.21 42.20 45.01 75.01 7.00 7.00 17.81 52.20 27500 12.14



 CHAIN NO. Pitch Width Roller Plate Pin Average
 Ultimate
Strength
kgf
Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H H1 H2 T1 T2 D L

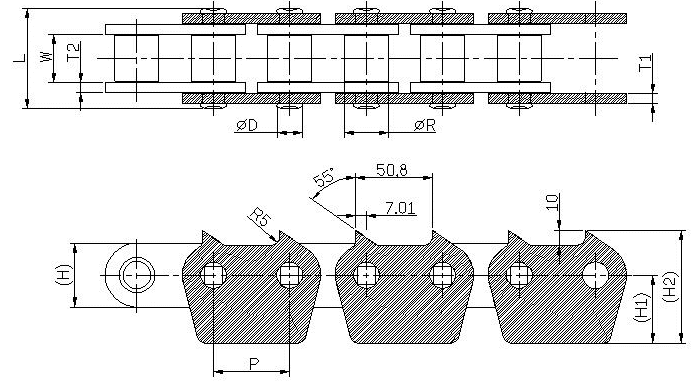

32B SLF 2" 50.80 31.60 29.21 65.01 45.01 75.01 7.00 7.00 17.81 66.20 27500 15.58

* Machine Bottom is available when required
* Sideplate height could be grounded(machine bottom) to requested dimension
Number in parentheses is the dimension before ground.
